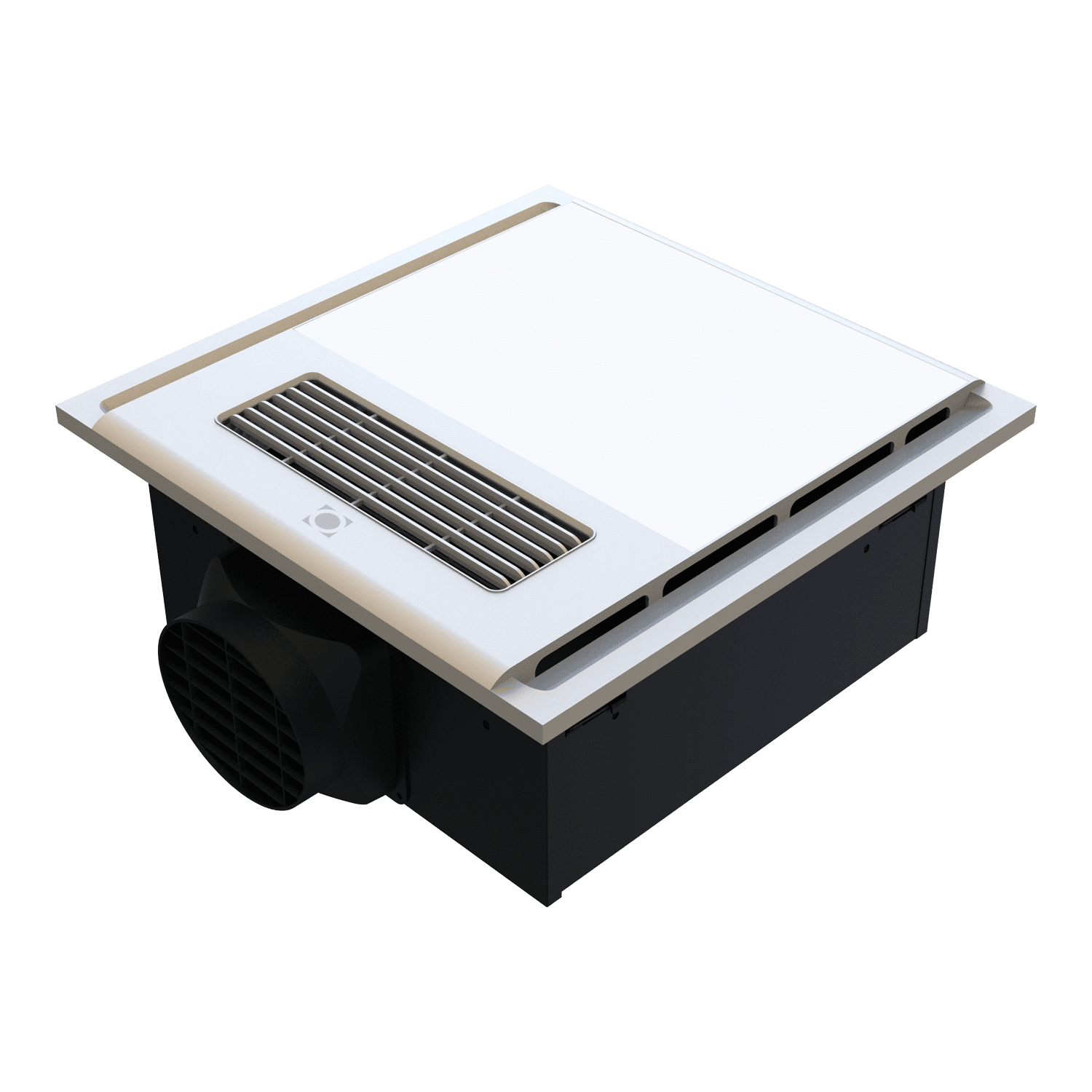

HEATCORE - 4 in 1 Retrofit Bathroom Heater

$344.89
Tax included.
56024
ENQUIRE NOW
Colour: White

Pickup available at GCM Lighting, Electrical & Automotive

Usually ready in 24 hours

PRODUCT INFO

The HEATCORE 4-In-1 Retrofit Line Bathroom Heater offers a modern flush-like appearance, designed to replace previously installed 3-In-1 Infrared bathroom heater models. Suitable for most contemporary bathroom designs, combined with the latest technology in PTC bathroom heater models. Retrofit Line range offers 4-In-1 Functions – Heater, Exhaust Fan, Circulating Fan, and Light Unit. Patented Heat Breeze Technology heats the room while offering low level extraction to help reduce condensation build up in the bathroom. This Retrofit Line model features a single AC Motor, producing a 2150W output of powerful heat breeze, high volume extraction at 300m3
/h, circulating fan to reduce warm temperature
build up, and a 12W LED Tri-Colour switchable light. Complete with Digital Wall Controller, allowing easy switching from all modes, and an ALL OFF button for exiting. Ideal for retrofit installations, where no extra switch wires are required, simply utilising two cores from the 5-core wiring that is existing from previous installation.
Domus PTC Bathroom Heaters feature an advanced safety feature where the unit will automatically shut off after two hours in case it is left on accidentally. If the unit runs for two hours continuously, a safety function will automatically turn it off. This setting can be overridden and reset by pressing any switch on the controller within this two-hour period. Ideal for new and existing installations with a larger 390x390mm fascia frame, and a cutout size of 330x350mm, which will cover most existing 2 and 4 Heat Infrared Bathroom Heater models. Accessories include Digital Controller Wall Controller, 3M Flexible Duct, and Exterior Grille. All Domus PTC Bathroom Heaters are backed by our 5 Year In-Home Warranty.

SPECIFICATIONS

Includes White Wall Controller and Horizontal switchplate film cover
Specification Features:
Input Voltage: 240V AC
Power (W): 2250W
Motor Wattage (W): 60W AC
Fan Size: 60W
Air Extraction: 300m3/h
Heat Wattage: 2150W
Heat Type: PTC Heating Element
Light Wattage: 12W LED
IP Rating (IP): IPX2
Decibel Rating (dB): ≤46dB
CCT: 3000K - 4000K - 5000K (Changeable)
Lumen Output 3000K 4000K 5000K
850lm 950lm 900lm
CRI: ≥80
Cutout: 330x350mm
Fascia Size: 390x390mm
Duct Size: 100mm
Accessories: 6-Switch Digital Wall Controller, 3M Flexible Duct, Exterior Grille

DIMENSIONS

390mm x 390mm x 158mm height
Minimum 200mm height clearance required

Installation & Warranty

Install: Must be installed by a qualified electrical contractor.

Warranty: Email sales@gcm.com.au for more details

Download Install Specs
Download Install Sheets
